Critical Applications of Finned Tubes in Petroleum and Chemical Processing
Finned Tubes in Petrochemical Heat Control
In the petroleum and chemical industries, heat management is a 24/7 critical operation. From the fractional distillation of crude oil to the synthesis of complex polymers, the ability to control temperature gradients determines both product quality and plant safety. Finned tubes are the preferred heat transfer technology in these sectors because they provide the robust surface area needed to handle high-viscosity fluids and large-scale gas cooling.

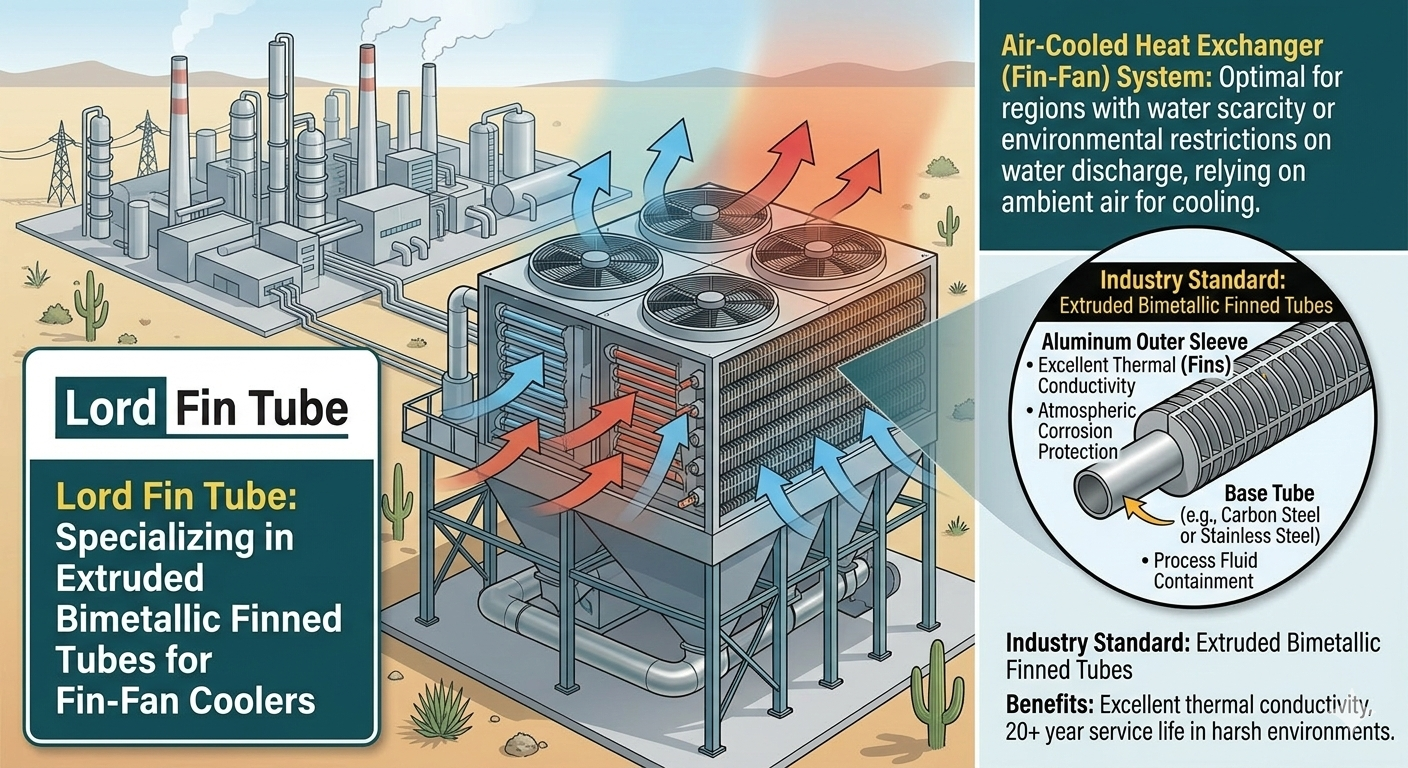

Air-Cooled Heat Exchangers (ACHE) in Refineries
One of the most prominent applications is in Air-Cooled Heat Exchangers, often referred to as fin-fans. In regions where water is scarce or environmental regulations limit water discharge, refineries rely on ambient air to cool process fluids.
For these applications, Extruded Bimetallic Finned Tubes are the industry standard. At Lord Fin Tube, we utilize an aluminum outer sleeve mechanically bonded to a base tube (such as Carbon Steel or Stainless Steel). The aluminum fins provide excellent thermal conductivity and protect the inner tube from atmospheric corrosion, ensuring a service life that often exceeds 20 years in harsh refinery environments.
Process Heaters and Reboilers
In chemical synthesis, maintaining a precise reaction temperature is paramount. Finned tubes are integrated into Process Heaters and Reboilers to maximize the heat flux from combustion gases to the chemical media.
Using High-Frequency Welded (HFW) Finned Tubes allows for:
Essential for handling volatile hydrocarbons under pressure.
The continuous weld ensures that heat is transferred uniformly, preventing localized hot spots that could degrade sensitive chemical products.
By increasing heat density, chemical plants can install smaller, more efficient furnace units.
Handling Corrosive and High-Viscosity Media
The chemical industry often deals with aggressive media, such as sulfuric acid or chlorides. Standard carbon steel is frequently insufficient. Lord Fin Tube provides specialized solutions using Titanium, Inconel, and Duplex Stainless Steel base tubes equipped with specialized finning.
For high-viscosity fluids like heavy crude or bitumen, the turbulence generated by the fins helps "stir" the fluid layer near the tube wall. This reduces the stagnant film resistance and significantly boosts the overall heat transfer coefficient, which is otherwise notoriously low for thick, oily substances.
Why Leading Petrochemical Firms Choose Lord Fin Tube
Success in the oil and gas sector requires more than just hardware; it requires metallurgical expertise and precision manufacturing. Lord Fin Tube supports the industry through:
- ✔ Stringent Material Traceability: Ensuring all alloys meet ASTM and ASME standards for refinery use.
- ✔ Custom Fin Geometries: Tailoring fin pitch and height to minimize pressure drop in gas-phase reactions.
- ✔ Advanced Testing: Implementing Ultrasonic and Hydrostatic testing to guarantee zero-leak performance in critical process loops.
By optimizing the thermal interface between process streams, our finned tube solutions help petrochemical facilities reduce energy overhead and maintain the rigorous uptime required by global energy markets.
